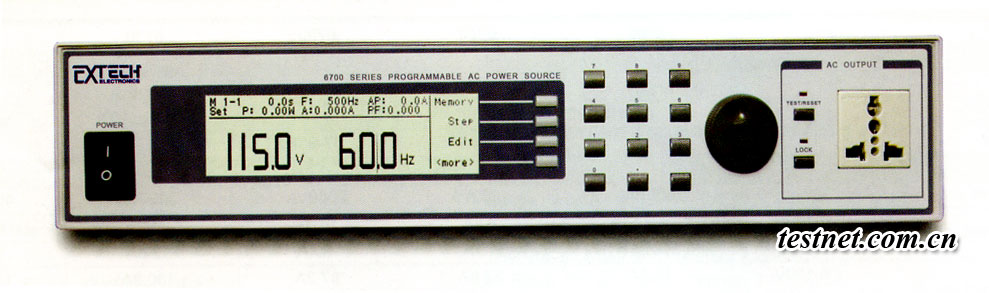

【名称】可程式交流电源供应器
【型号】6700系列
【厂商】台湾华仪(台湾)
【简介】* 大型的240×64 Graphic LCD显示器
* 测试中可以透过飞梭旋钮(Rotary Knob)即时的调整显示中的电压/频率输出
* 可编程设计
* 可程式50个记忆组

已有[3972]人浏览

　　特点：
　　* 大型的240×64 Graphic LCD显示器，可同时显示V，F，Arms，Apeak，P，PF，Time
　　* 测试中可以透过飞梭旋钮(Rotary Knob)即时的调整显示中的电压/频率输出
　　* 可编程设计；可以设定输出启始角度/结束角度及模拟突波(Surge)/下陷波(Drop)
　　* 可程式50个记忆组；内含9测试步骤，记忆组间可连结测试模拟各种负载的电源特性
　　* 可储存呼叫50个记忆组，且测试中可即时调整电压/频率的输出记忆功能
　　* 针对被测物的寿命试验，可设定自动测试循环的次数及以秒、分、时为单位的时间设定
　　* 使用先进的高密度电源技术设计，1KVA容量高度只有2U(8.9cm)
　　* 0.1mA/0.01W量测解析度(选配)，可节省自行外加power meter的成本
　　* 特殊的恒流装置，可轻易启动马达、压缩机等高启动电流之负载
　　* 可选配Remote I/P(7组记忆) 界面自动化控制输出或GPIB/RS232界面作控制
　　* 输出过载、短路、过电压及过温度保护及警报
　　* 另可选购(输出电压0-600V、频率45.0-999.9Hz)
　　[Features]
　　* Large 240×64 Graphic LCD display for readouts of V,F,Arms,Apeak,P,PF and Time
　　* Adjust voltage/frequency setting via Rotary Knob when output is turn ON.
　　* Programmable design:Capable to set the starting and ending angle/Surge/Drop cycle.
　　* Programmable 50 memories,9 steps per memory,for interconnection between each step to simulate different testing condition of the DUT.
　　* Capable to store and recall 50 memories,as well as varying voltage/frequency when output is turn ON.
　　* For Aging or Life test on DUT,the user able to change the timer either in second,minute or hour.
　　* High
　　* Optional high resolution measurement of 0.1mA/0.01W for cost effective solution as no additional Power Meter needed
　　* There is a unique feature that able to turn on high inrush current loads such as motors and compressors
　　* Optional Remote I/P(includes 7 memories recall) interface for automatic control or GPIB/RS232 interface control
　　* Protections and alerts for overload,short circuit,over voltage and over temperature
　　* Option:Voltage 0-600V and Frequency 45.0-999.9Hz

[Specification]
MODEL			6705	6710	6720	6730	6740
INPUT
Phase			1Ø
Voltage			115/230Vac±15%		230Vac±15%
Frequency			47-63Hz
OUTPUT
Max.Power			500VA	1000VA	2000VA	3000VA	4000VA
Max.Current(r.m.s)*1	0-150V		4.2A	8.4A	16.8A	25.2A	33.6A
	0-300V		2.1A	4.2A	8.4A	12.6A	16.8A
Max.Current(Peak)	0-150V		16.8A	33.6A	67.2A	100.8A	134.4A
	0-300V		8.4A	16.8A	33.6A	50.4A	67.2A
Option 0-600V
Max.Current(r.m.s)*2	0-300V		2.1A	4.2A	8.4A	12.6A	16.8A
	0-600V		1.05A	2.1A	4.2A	6.3A	8.4A
Max.Current(Peak)m	0-300V		8.4A	16.8A	33.6A	50.4A	67.2A
	0-600V		4.2A	8.4A	16.8A	25.2A	33.6A
Phase			1Ø/2W
THD(Total Harmonic Distortation)			≤0.5% at 45-500Hz(Resistive Load)
Crest Factor			≥4
Line Regulation			0.1% max for±10% line change.
Load Regulation			≤0.5%(Resistive Load)
Response Time			<100μS
SETTINGS
Voltage	Range		0-300V,150/300V auto or 0-600V,300/600V auto(Option 0-600V)
	Resolution		0.1V
	Accuracy		±(0.5% of setting +2counts)
Frequency	Range		45-500Hz
	Resolution		0.1Hz at 45-99.9Hz,1Hz at 100-500Hz
	Accuracy		±0.02% of setting
Frequency (Option 45Hz-1KHz)	Range		45-1000Hz
	Resolution		0.1Hz at 45-99.9Hz,1Hz at 100-1000Hz
	Accuracy		±0.02% of setting
Starting & Ending Phase Angle	Range		0-360°
	Resolution		1°
	Accuracy		±1°(45-65Hz)
MEASUREMENT
Frequency	Range		0.0-500.0Hz/0.0-999.9Hz
	Resolution		0.1Hz
	Accuracy		±0.1Hz
Voltage	Range		0.0-300.3V/0.0-600.0V
	Resolution		0.1V
	Accuracy		±(0.5% of reading +2counts) for 0-300V/±(0.5% of reading +4counts) for 0-600V
Current(r.m.s)	Range	L	0.000-3.500A
		H	3.00-35.00A
	Resolution	L	0.001A
		H	0.01A
	Accuracy	L	±(0.5% of reading +5counts)
		H	±(0.5% of reading +3counts)
Current(peak)	Range		0.0-200.0A
	Resolution		0.1A
	Accuracy		±(1% of reading +2counts)
Power	Range	L	0.000-350.0W
		H	3.00-4000W
	Resolution	L	0.1W
		H	1W
	Accuracy	L	±(0.6% of reading +5counts)
		H	±(0.5% of reading +2counts)
PowerFactor	Range		0.000-1.000
	Resolution		W/VA,Calculated and displayed to three significant digits
	Accuracy
GENERAL
Low Range Meter(for 6705/6710 Option)			Range:2.0mA-350.0mA/0.20W-35.00W
			Resolution:0.1mA/0.01W
			Accuracy:±(0.6% of reading +5counts)
Remote Input Signal Interface(Option)			Test,Reset,Recall program memory 1 through 7
Remote Output Signal			Pass,Fail,Test-in Process
Memory			50 memories,9 steps/memory
Sync Output Signal			Output Signal 10V,BNC type
Timer			0-Continuous,0.1-999.9(Unit:sec,minute,hour selectable)
Alarm Volume Setting			Range:0-9;0=Off,1 is softest volume,9 is loudest volume.
Graphic Display			240×64 dot resolution Monographic LCD/Contrast 9 Levels 1-9
Auto loop cycle			By step or memory, or system loop cycel setting.0=Continuous,OFF,2-9999
Over Current Fold Back			On/Off,Setting On wher output current over setting A-Hi value it will fold back output voltage to keep constant output current is setting A-Hi value.
Protection			OCP,OTP,OVP and Alarm
Interface			GPIB/RS232/Remote I/P Control option
Dimmension(W×H×D)mm			430×89×400,2U	430×89×560,2U	430×267×650,6U	430×667×650,15U	430×667×650,15U
Net Weight			25kg	38kg	90kg	165kg	192kg
Operation Environment			0-40℃/20-80%RH
*1 At working voltage 120V/240V			product specifications are subject to change without notice.
*2 At working voltage 240V/480V

　　[Ordering Information]
　　* 6705 Programmable AC Power Source 0-300V/45-500Hz(500VA)
　　* 6710 Programmable AC Power Source 0-300V/45-500Hz(1000VA)
　　* 6720 Programmable AC Power Source 0-300V/45-500Hz(2000VA)
　　* 6730 Programmable AC Power Source 0-300V/45-500Hz(3000VA)
　　* 6740 Programmable AC Power Source 0-300V/45-500Hz(4000VA)
　　* Opt.612 PLC Remote I/P Interface
　　* Opt.623 Low Range meter Resolution 0.1mA/0.01W for 6705/6710
　　* Opt.624 Output 0-600V
　　* Opt.625 Output Frequency 45.0Hz-999.9Hz
　　* Opt.626 Rs232 Interface card
　　* Opt.627 GPIB Interface card
