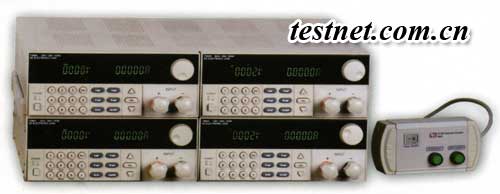

Newest multi-channel programmable DC electronic loads.
It can be work from 0V,with high resolution of 1mV.0.1mA,can program in the panel to support the function of automatic testing.
It can be used in product line for test power supply,battery and charger.
Equipped with one remote control box make users to operate the machine more easier,Equipped with IT-252 Multi-Channel Load Controller to support parallel connection to 8 channel,16 channel and 32 channel and so on. | VFD display
High resolution 0.1 mA/1mV
Can work from 0V to 500V
working mode CV/CC/CW/CR
OV/OC/OP/OT protection
Parallel connection, Max power is 1200W,MaxCurrent is 240A
可完成多达32路以上的测试方案
高可见度真空荧光VFD显示屏
高解析度0.1mA/1mV
可0-500V操作
工作模式：定电压/定电流/定电阻/定功率/ 过电压/过电流/过功率/过热保护
可并联使用，最大功率1200W 240A | IT8600多路可程序直流电子负载，可0伏操作，1mV/0.1mA的高分辨率，具有可编程自动测试的功能，特别适用在电源、电池、充电器之研发、生产、维修测试上使用。本机附有线控键盘，可方便用户快速操作，每个信道具有独立且完整的控制接口及高清晰VFD显示，让您可以如同操作单信道负载般轻松监控每个信道。
经由IT-252附件，可实践多达32路以上的电子负载测试方案。 |
Accessory
IT-251 Remote Control Box
IT-252 Multi-Channel Load Controller
Option Accessory
IT-E131 RS232 Communication cable
IT-E132 USB Communication cable
IT-E134 Communication cable(GPIB)
IT-E151 rack mount | PV8500 Programming Software is a easy-operation graphical user interface for the IT8600 series DC electronic load | PC8500 Calibration Software is a convince one for calibrate the instrument and print the
calibration report automatically |
